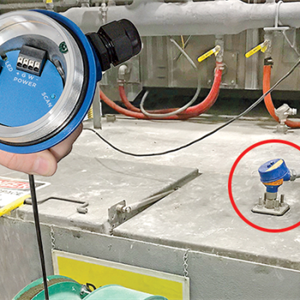

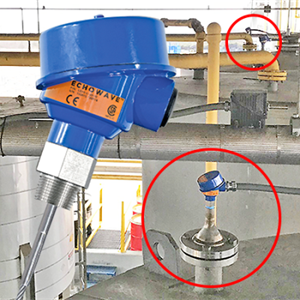

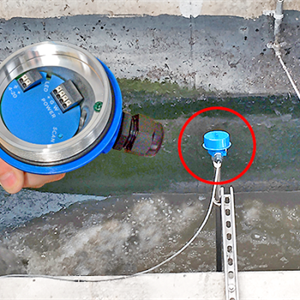

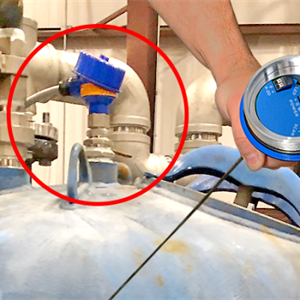

美國FLOWLINE LG10 LG-1 LG11導波雷達料位計是依據時域反射原理(TDR Time Domain Reflectometry)為基礎的雷達料位計，時域反射原理首先是用于通訊電纜的故障檢測，今天我們將其成功應用于工業測量，電磁脈沖以光速沿鋼纜或探棒傳播，當遇到被測介質表面時，部分脈沖被反射形成回波并沿相同路徑返回到脈沖發射裝置，發射裝置與被測介質表面的距離同脈沖在其間的傳播時間成正比，回波的極性和振幅取決于上層介質與下層介質的介電常數εr。一般來講，上層的介質通常為氣體，其介電常數接近εr1.0，下層被測介質的介電常數較高。 調頻連續波雷達料位計是依據調頻連續波原理(FMCW Frequency Modulated ContinuousWave)為基礎的雷達料位計，這區別于脈沖式雷達，并因其優越的性能而廣泛應用于工業領域。使用線性調頻高頻信號，發射頻率隨一定時間間隔(掃描頻率)線性增加，頻率范圍為8.5G～9.9G，波長約為3cm。由于發射頻率是隨著信號傳播的時間變化的，與反射物體距離成比例的低頻信號頻率f是由當前發射頻率與接收的反射頻率的差值獲得的。雷達料位計適用于酸堿儲罐、漿料儲罐、固體顆粒、小型儲油罐。各類導電、非導電介質、腐蝕性介質。如煤倉、灰倉、油罐、酸罐等雷達料位計的優點
      ● 雷達料位計是非接觸式測量或TDR導波式測量
      ● 雷達料位計應用電磁脈沖進行快速測量，精度高，抗干擾能力強
      ● 耐腐蝕（探頭大多采用316不銹鋼或PVDP等材料）
      ● 耐壓高（40Kg/cm2）
      ● 耐溫高（200℃）

雷達料位計的注意事項
      ● 雷達料位計對于安裝空間有一定的要求
      ● 注意介質的介電常數，并依據介電常數的大小選擇適合的型號

EchoWave^® LG10-11 Guided Wave Liquid Level Transmitter

Range: Rod & coaxial: 9.8’ (3m), cable: 18’ (5.5m)

Accuracy: ± 3mm

Dead band: Top: 4” (10cm), bottom: 2” (5cm)

Repeatability: < 2mm

Resolution: < 2mm

Configuration: WebCal^? PC, Windows^®, USB 2.0

Supply voltage: 10-30 VDC

Max. consumption: < 50mA @ 24 VDC

Signal output: 4-20mA, 3-wire

Signal fail-safe: 4mA, 20mA, 21mA, 22mA or hold last

Dielectric: > 1.8

Process temp.: F: -40o to 302o, C: -40o to 150o

Ambient temp.: F: -40o to 185o, C: -40o to 85o

Pressure: -14.5 to 250 PSI, (-1 to 17 bar)

Enclosure rating: NEMA 4

Encl. material: Aluminum

Feed through mat.: 316L SS & PEEK

Conduit entrance: (1) 1/2” NPT connector

Probe material: Rod: & coaxial: 316L SS, cable: 316 SS

Process mount: 3/4” NPT (3/4” G)

Classification: General purpose

Certification: CSA, NRTL

Compliance: CE, CRN, RoHS

P/N	DESCRIPTION
LG10-0003-00-036	36″ (.9m) rod, 3/4″ NPT, w/o Fob
LG10-0003-01-036	36″ (.9m) rod, 3/4″ NPT, w/Fob
LG10-0013-00-036	36″ (.9m) rod, 3/4″ G, w/o Fob
LG10-0013-01-036	36″ (.9m) rod, 3/4″ G, w/Fob
LG10-0003-00-072	72″ (1.8m) rod, 3/4″ NPT, w/o Fob
LG10-0003-01-072	72″ (1.8m) rod, 3/4″ NPT, w/Fob
LG10-0013-00-072	72″ (1.8m) rod, 3/4″ G, w/o Fob
LG10-0013-01-072	72″ (1.8m) rod, 3/4″ G, w/Fob
LG10-0003-00-118	118″ (3m) rod, 3/4″ NPT, w/o Fob
LG10-0003-01-118	118″ (3m) rod, 3/4″ NPT, w/Fob
LG10-0013-00-118	118″ (3m) rod, 3/4″ G, w/o Fob
LG10-0013-01-118	118″ (3m) rod, 3/4″ G, w/Fob
LG10-1003-00-036	36″ (.9m) coaxial, 3/4″ NPT, w/o Fob
LG10-1003-01-036	36″ (.9m) coaxial, 3/4″ NPT, w/Fob
LG10-1013-00-036	36″ (.9m) coaxial, 3/4″ G, w/o Fob
LG10-1013-01-036	36″ (.9m) coaxial, 3/4″ G, w/Fob
LG10-1003-00-072	72″ (1.8m) coaxial, 3/4″ NPT, w/o Fob
LG10-1003-01-072	72″ (1.8m) coaxial, 3/4″ NPT, w/Fob
LG10-1013-00-072	72″ (1.8m) coaxial, 3/4″ G, w/o Fob
LG10-1013-01-072	72″ (1.8m) coaxial, 3/4″ G, w/Fob
LG10-1003-00-118	118″ (3m) coaxial, 3/4″ NPT, w/o Fob
LG10-1003-01-118	118″ (3m) coaxial, 3/4″ NPT, w/Fob
LG10-1013-00-118	118″ (3m) coaxial, 3/4″ G, w/o Fob
LG10-1013-01-118	118″ (3m) coaxial, 3/4″ G, w/Fob
LG11-2003-00-216	216″ (5.5m) cable, 3/4″ NPT, w/o Fob
LG11-2003-01-216	216″ (5.5m) cable, 3/4″ NPT, w/Fob
LG11-2013-00-216	216″ (5.5m) cable, 3/4″ G, w/o Fob
LG11-2013-01-216	216″ (5.5m) cable, 3/4″ G, w/Fob
